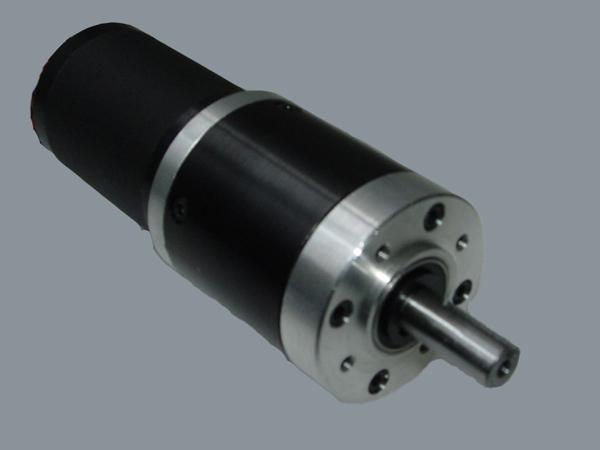

42mm Brushless Motor with 48mm Planetary Gearbox
FL42RBL60-24XX-48JXG200K
Features
Planetary gearbox, stable operation, low noise, high efficiency, long service life
Application
Medical industry: Biochemical analyzer, hematology analyzer, centrifuge
Scientific instrument industry: Environment detector, mine gas detector
Industrial automation industry: Automatic door, electronic component
Vehicle Industry: Engineering car air filter
Household appliance industry: Hair dryer
Others: Optical correction industry, etc.
| Model | FL42RBL60-2420-48JXG200K | FL42RBL60-2430-48JXG200K |
| Number of Poles | 8 | 8 |
| Number of Phases | 3 | 3 |
| Rated Voltage V DC | 24 | 24 |
| Rated Speed RPM | 1400 | 2100 |
| Rated Torque N·m | 0.04 | 0.05 |
| Rated Power W | 5.8 | 11.0 |
| Rated Current A | 0.5 | 0.85 |
| Peak Current A | 1.5 | 2.6 |
| Resistance Ω | 11.9 | 6.0 |
| Inductance mH | 15.0 | 6.4 |
| Ratio | 316 | 403 | 515 | 944 | 1206 | 1540 |
| No. of Gear Trains | 4 | 4 | 4 | 5 | 5 | 5 |
| Length mm | 64.5 | 64.5 | 64.5 | 74.5 | 74.5 | 74.5 |
| Short-time Max. Permissible Load Kg·cm | 300 | 300 | 300 | 600 | 600 | 600 |
| FL42RBL60-2420-48JXG200K | ||||||
| No-load Speed RPM | 6.32 | 4.96 | 3.88 | |||
| Rated Speed RPM | 4.43 | 3.47 | 2.71 | |||
| Rated Torque N·m | 8.29 | 10.59 | 13.52 | |||
| FL42RBL60-2430-48JXG200K | ||||||
| No-load Speed RPM | 3.17 | 2.48 | 1.94 | |||
| Rated Speed RPM | 2.22 | 1.74 | 1.36 | |||
| Rated Torque N·m | 27.87 | 35.6 | 44.4 | |||
