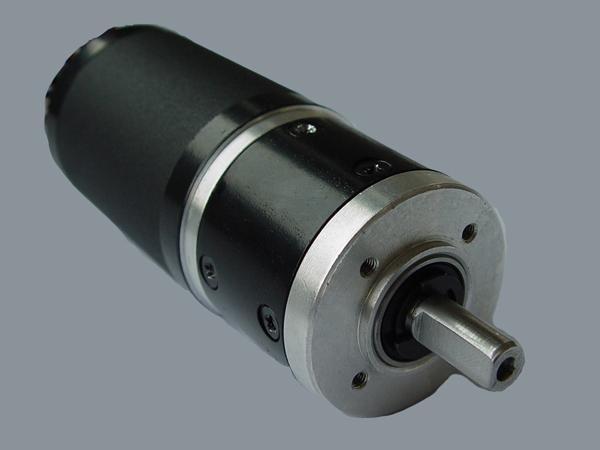

42mm Round Brushless Motor with 40mm Planetary Gearbox
FL42RBL60-24XX-40JXG50K brushless DC motor
Features
Planetary reducer, stable running, high efficiency, long service life
Application
Household appliance industry: Hair dryer
Vehicle Industry: Engineering car air filter
Scientific instrument industry: Mine gas detector, environment detector
Industrial automation industry: Electronic components, automatic doors
Medical industry: Biochemical analyzer, hematology analyzer, centrifuge
Others: Optical correction industry, etc.
| Model | FL42RBL60-2420-40JXG50K | FL42RBL60-2430-40JXG50K |
| Number of Poles | 8 | 8 |
| Number of Phases | 3 | 3 |
| Rated Voltage V DC | 24 | 24 |
| Rated Speed RPM | 1400 | 2100 |
| Rated Torque N·m | 0.04 | 0.05 |
| Rated Power W | 5.8 | 11.0 |
| Rated Current A | 0.5 | 0.85 |
| Peak Current A | 1.5 | 2.6 |
| Resistance Ω | 11.9 | 6.0 |
| Inductance mH | 15.0 | 6.4 |
| Ratio | 3.6 | 4.9 | 15 | 19 | 24 | 56 | 71 | 91 | 116 | 212 |
| No. of Gear Trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 |
| Length mm | 35.5 | 35.5 | 45.5 | 45.5 | 45.5 | 55.5 | 55.5 | 55.5 | 55.5 | 66 |
| Short-time Max. Permissible Load Kg·cm | 15 | 15 | 60 | 60 | 60 | 150 | 150 | 150 | 150 | 150 |
| FL42RBL60-2420-40JXG50K | ||||||||||
| No-load Speed | 555 | 408 | 133 | 105 | 83 | 35 | 28 | 22 | 17 | 9 |
| Rated Speed RPM | 388 | 285 | 93 | 73 | 58 | 25 | 19 | 15 | 12 | 6.6 |
| Rated Torque N·m | 0.13 | 0.18 | 0.49 | 0.62 | 0.776 | 1.63 | 2.07 | 2.65 | 3.38 | 5.56 |
| FL42RBL60-2430-40JXG50K | ||||||||||
| No-load Speed RPM | 833 | 612 | 200 | 157 | 125 | 53 | 42 | 33 | 25 | 14 |
| Rated Speed RPM | 583 | 428 | 140 | 110 | 87 | 375 | 29 | 23 | 18 | 9.9 |
| Rated Torque N·m | 0.16 | 0.19 | 0.60 | 0.76 | 0.97 | 2.04 | 2.58 | 3.31 | 4.22 | 6.95 |
