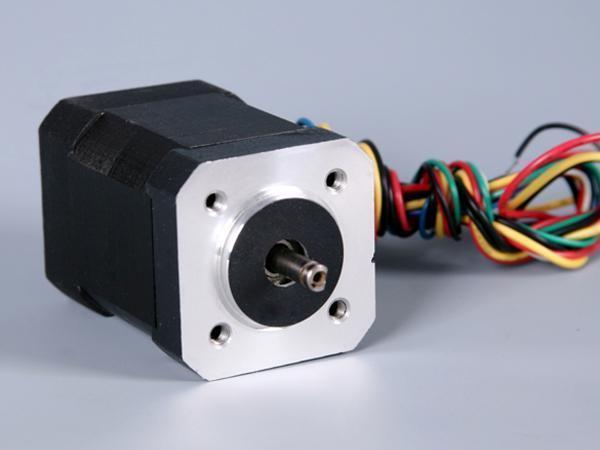

42mm Square Flange Brushless Motor
Features
Multi-pole design, stable running, high power density
Application
Industrial automation industry: Electronic components, automatic doors
Vehicle Industry: Engineering car air filter
Household appliance industry: Hair dryer, mower
Medical industry: Biochemical analyzer, hematology analyzer, centrifuge
Scientific instrument industry: mine gas detector, coal quality analytical instruments, environment detector, precision computer embedded devices
Others: Optical correction industry, etc.
| Winding Connection Mode | Triangle |
| Hall Distribution Angle | 120 degree electrical angle |
| Shaft Runout | 0.025mm |
| Radial Play | 0.02mm at 450g |
| End Play | 0.08mm at 450g |
| Max. Radial Force | 28N at 10mm from the flange |
| Max. Axial Force | 10N |
| Insulation Class | Class B |
| Dielectric Strength | 500V DC for one minute |
| Insulation Resistance | 100MΩ Min., 500V DC |
| Model | FL42BLS01 | FL42BLS02 | FL42BLS03 | FL42BLS04 |
| Number of Poles | 8 | |||
| Number of Phases | 3 | |||
| Rated Voltage V DC | 24 | |||
| Rated Speed RPM | 4000 | |||
| Continuous Stall Torque mN·m | 0.075 | 0.15 | 0.22 | 0.3 |
| Rated Torque mN·m | 0.0625 | 0.125 | 0.185 | 0.25 |
| Rated Power W | 26 | 52.5 | 77.5 | 105 |
| Peak Torque mN·m | 0.19 | 0.38 | 0.56 | 0.75 |
| Peak Current A | 5.4 | 10.6 | 15.5 | 20 |
| Phase to Phase Resistance Ω | 1.5 | 0.8 | 0.43 | 0.3 |
| Phase to Phase Inductance mH | 2.1 | 1.2 | 0.71 | 0.5 |
| Torque Constant | 0.035 | 0.0355 | 0.036 | 0.0376 |
| Back-EMF Constant Vrms/KRPM | 2.45 | 2.71 | 2.74 | 2.62 |
| Rotor Inertia g·cm2 | 24 | 48 | 72 | 96 |
| Body Length mm | 41 | 61 | 81 | 100 |
| Mass Kg | 0.3 | 0.45 | 0.65 | 0.8 |
