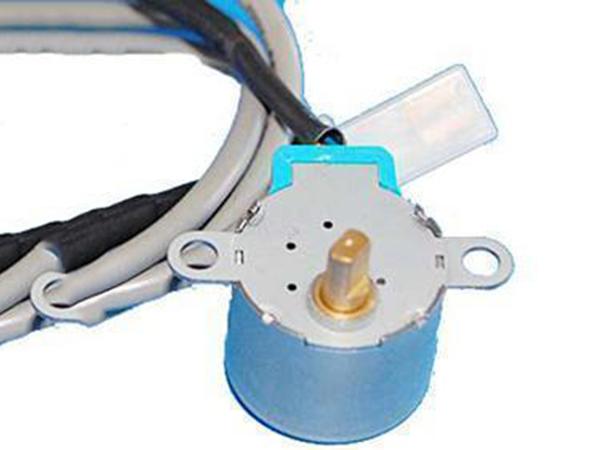

PMG 24/28/30/35BYJ Series Geared Stepper Motor
Features
Low cost, high torque, fast dynamic response, low noise
Application
Household appliance industry: Refrigerator, air conditioner, intelligent sanitary ware, automatic door lock
Industrial control industry: Monitor, electronic meter, valve control system
Office automation industry: Scanner, fax machine, dot matrix printer
Vehicle industry: Throttle, etc.

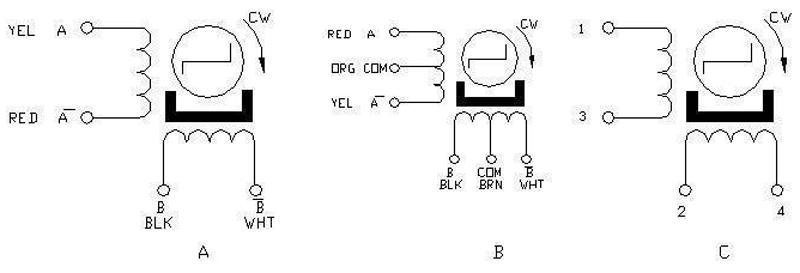

| Model | Rated voltage (V) | No. of phase | Resistance per Phase (Ω) | Step Angle (Deg.) | Gear Ratio | Pull-in Torque at 100pps (g·cm ) | Pull-in Rate (pps) | Detent Torque (g·cm ) | Wiring Diagram |
| 24BYJ64-05-025 | 5 | 2 | 25 | 5.625/64 | 1:64 | ≥ 300 | ≥ 400 | ≥ 300 | A |
| 28BYJ48-12-300 | 12 | 4 | 300 | 5.625/64 | 1:64 | ≥ 300 | ≥ 500 | ≥ 200 | C |
| 30BYJ48-12-300 | 12 | 4 | 300 | 7.5/85.25 | 1:85.25 | ≥ 400 | ≥ 350 | ≥ 400 | C |
| 35BYJ46-12-110 | 12 | 4 | 110 | 7.5/85.25 | 1:85.25 | ≥ 1000 | ≥ 500 | ≥ 800 | B |
Related Names
Industrial Monitor Used Permanent Magnet Step Electromechanical Device with Gear Box | PM Stepping Gear Motor for Electronic Device | Valve Control System Used Permanent Magnet Induction Gear Motor | Stepper Gear Motor with PM Type for Stylus Printer
